Design and construction
ASME B16.34, API 6D.
Direct Access Design,

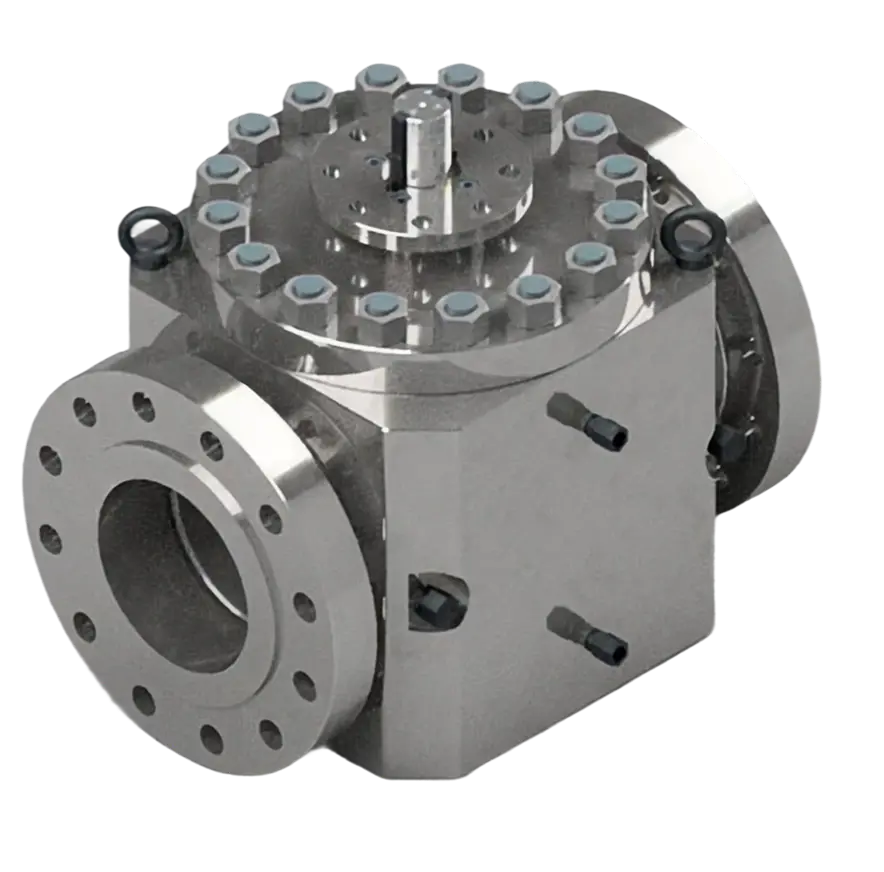

Advanced Top Entry SolutionsFloating & Trunnion mounted ball valves, construction to API 6D, ASME B16.34, ASME VIII Div. II, top entry, flanged RF/RTJ ends to ANSI B16.5 or ASME B16.47 Series A (26'' & Above), face to face to ANSI B16.10, full/reduced bore, manual, bare stem or automated, ISO (5211) top work standardized for actuation, double stem bearing, soft or metal seated, FE tested and qualified to ISO 15848-1, certified fire safe design, antistatic & blow out proof stem, double block & bleed, self relieving seats.
| Size | Seat option | Model | Pressure class |
|---|---|---|---|
| 2‘’ - 48‘’ | Soft seated | TEV | ANSI 150 - 2500 // API 2000 - 15000 |
| 2‘’ - 48’’ | Metal seated | IGI-TEV | ANSI 150 - 2500 // API 2000 - 15000 |
Design, Materials and Technical Features
Materials
Carbon Steel, Stainless Steel, Duplex, Super Duplex, Inconel, Hastelloy, Titanium, Nickel Aluminium Bronze.
Carbon Steel, Stainless Steel, Duplex, Super Duplex, Inconel, Hastelloy, Titanium, Nickel Aluminium Bronze.
Special services/applications
Cryogenic, High Temperature, Hydrogen, Oxygen, CO2, Urea & Ammonia, Subsea, high cycling and/or fast closing.
Cryogenic, High Temperature, Hydrogen, Oxygen, CO2, Urea & Ammonia, Subsea, high cycling and/or fast closing.
Tailor made solutions
Among others, Special Seals, Special Bore and/or face to face and/or connections to pipeline, Special Insulation Design, Clean Processing, DIB-1 (with or without integrated thermal relief system), DIB-2, injections and/or flushing systems.
Among others, Special Seals, Special Bore and/or face to face and/or connections to pipeline, Special Insulation Design, Clean Processing, DIB-1 (with or without integrated thermal relief system), DIB-2, injections and/or flushing systems.
Monograms owned
API 6D, API 6A (Up to PSL4, PR2), API 6DSS.
API 6D, API 6A (Up to PSL4, PR2), API 6DSS.

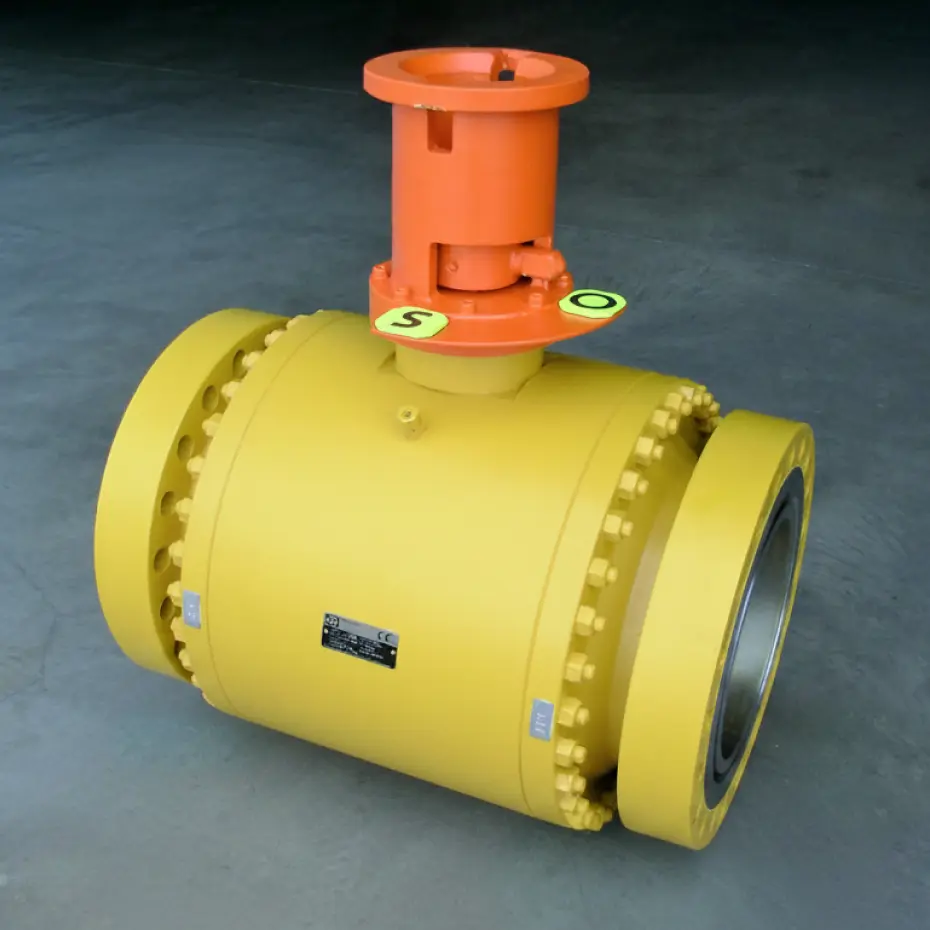

Subsea Solutions for Critical Offshore Applications
Subsea it’s not a place for everyone. Engineering is defined by its complexity: extreme depths, harsh environments, and the need for absolute operational reliability. Our solutions are designed to meet these challenges through robust construction, advanced sealing concepts, and high-performance materials engineered for offshore conditions.
Subsea performance is achieved through engineering discipline and proven experience.
