Design and construction
ASME B16.34, API 6D.
Built for Isolation, Designed for SafetyFloating & Trunnion mounted ball valves, double block and bleed modular design (twin ball), construction to API 6D, ASME B16.34, ASME VIII Div. II, 2/3 piece bolted body, side or end entry, flanged, welded or clamp type ends, full/reduced bore, manual, bare stem or automated, ISO (5211) top work standardized for actuation, double stem bearing, soft or metal seated, FE tested and qualified to ISO 15848-1, certified fire safe design, antistatic & blow out proof stem, double block & bleed, self relieving seats.
| Size | Seat option | Model | Pressure class |
|---|---|---|---|
| To client specs | Soft or metal seated | DBB | ANSI 150 - 2500 // API 2000 - 15000 |
Design, Materials and Technical Features
Materials
Carbon Steel, Stainless Steel, Duplex, Super Duplex, Inconel, Hastelloy, Titanium, Nickel Aluminium Bronze.
Carbon Steel, Stainless Steel, Duplex, Super Duplex, Inconel, Hastelloy, Titanium, Nickel Aluminium Bronze.
Special services/applications
Cryogenic, High Temperature, Hydrogen, Oxygen, CO2, Urea & Ammonia, Subsea, flushing system, high cycling and/or fast closing.
Cryogenic, High Temperature, Hydrogen, Oxygen, CO2, Urea & Ammonia, Subsea, flushing system, high cycling and/or fast closing.
Tailor made solutions
Among others, Ultra-Compact Design, Special Seals, Integral Seats, Special Bore and/or face to face and/or connections to pipeline, Special Insulation Design, Clean Processing, multiple and flexible configuration of seats design (DIB-1; DIB-2) and vent/drain/bleed connection and solutions, same for injections and/or flushing systems.
Among others, Ultra-Compact Design, Special Seals, Integral Seats, Special Bore and/or face to face and/or connections to pipeline, Special Insulation Design, Clean Processing, multiple and flexible configuration of seats design (DIB-1; DIB-2) and vent/drain/bleed connection and solutions, same for injections and/or flushing systems.
Monograms owned
API 6D, API 6A (Up to PSL4, PR2), API 6DSS.
API 6D, API 6A (Up to PSL4, PR2), API 6DSS.

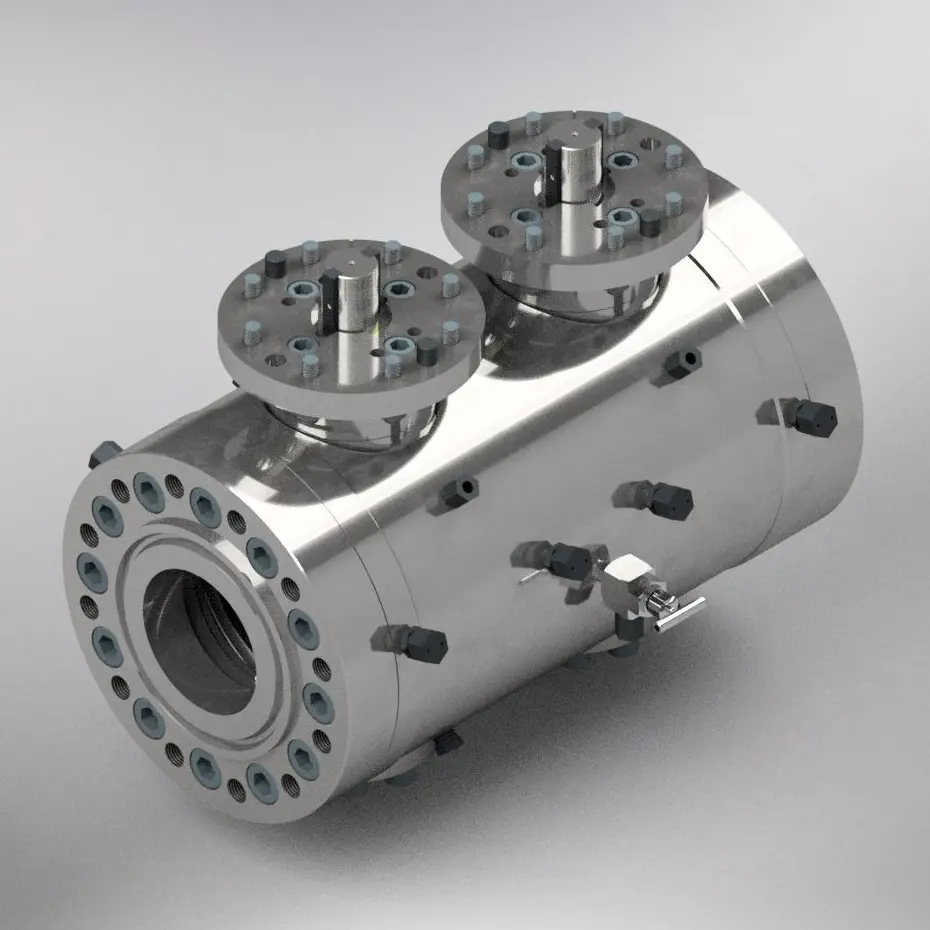

Tailor-Made Compact Solutions for Critical Isolation

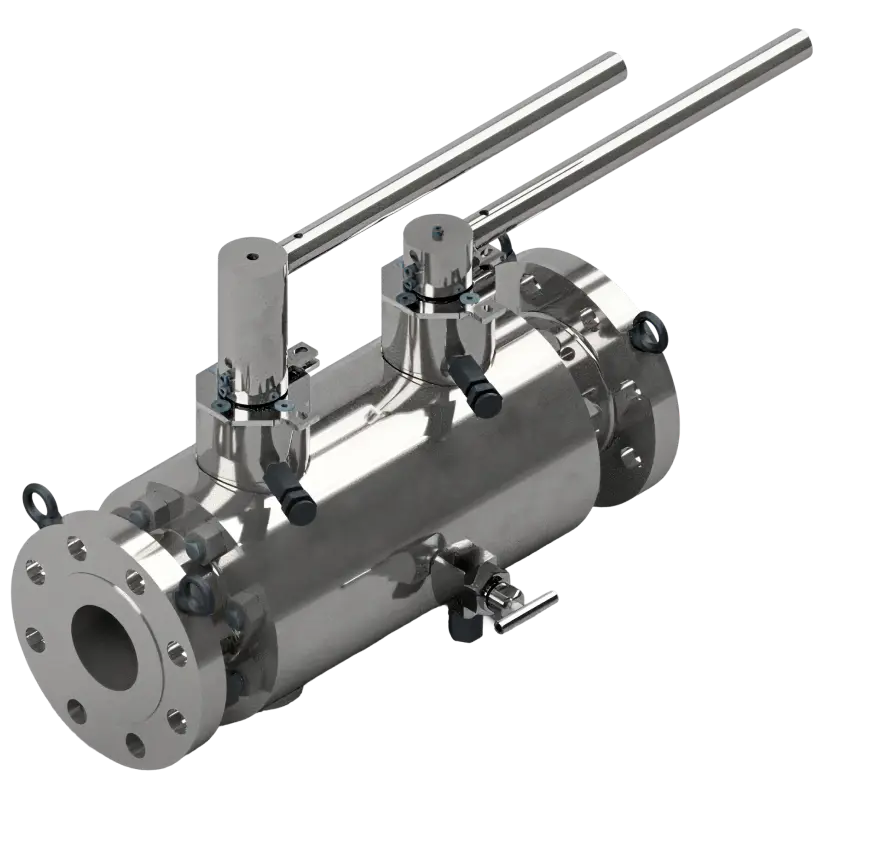

Modular twin-ball valves can be specifically engineered as ultra-compact solutions, designed around the client’s exact layout, space constraints, and operational requirements; without compromising isolation performance or safety.
Through dedicated engineering studies, we’ve developed twin-ball designs with the same face-to-face dimensions as single ball valves in accordance with API 6D. This makes it possible to integrate or replace existing valves without any modification to the piping system.
Tailor-made compact solutions
