Design and construction
API 6D.

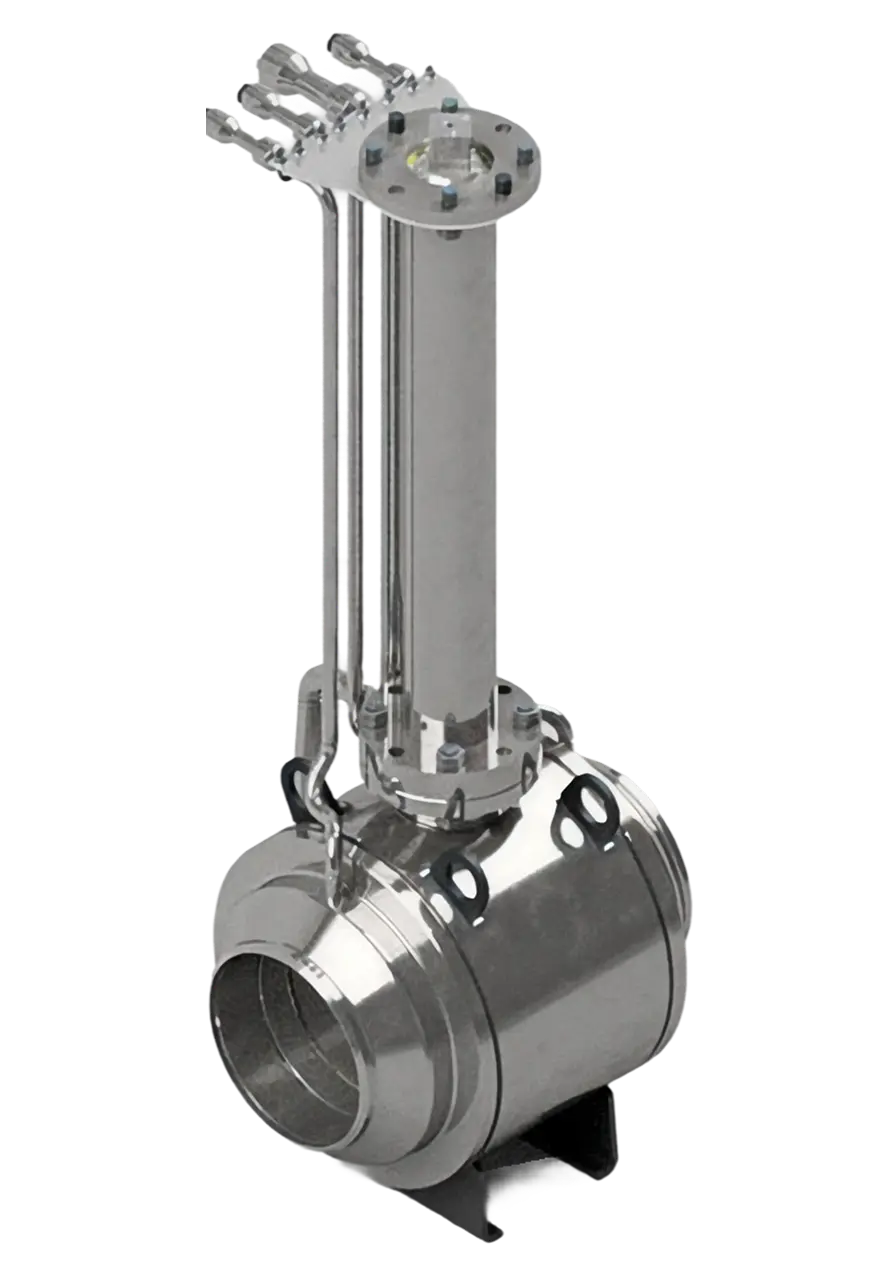

Trunnion mounted ball valves, construction to API 6D, ASME B16.34, ASME VIII Div. II, 2/3 piece welded body, fully welded, BW or flanged RF/RTJ ends to ANSI B16.5 or ASME B16.47 Series A (26'' & Above), face to face to ANSI B16.10, full/reduced bore, manual, bare stem or automated, ISO (5211) top work standardized for actuation, double stem bearing, soft or metal seated, FE tested and qualified to ISO 15848-1, certified fire safe design, antistatic & blow out proof stem, double block & bleed, self relieving seats.
| Body | Size | Seat option | Model | Pressure class |
|---|---|---|---|---|
| Welded body | 2‘’ - 48‘’ | Soft seated | TM3-FW | ANSI 150 - 2500 |
Design, Materials and Technical Features
Materials
Carbon Steel, Stainless Steel, Duplex, Super Duplex, Inconel.
Carbon Steel, Stainless Steel, Duplex, Super Duplex, Inconel.
Special services/applications
Underground, Cryogenic, High Temperature, Hydrogen, Oxygen, CO2, Subsea, high cycling and/or fast closing.
Underground, Cryogenic, High Temperature, Hydrogen, Oxygen, CO2, Subsea, high cycling and/or fast closing.
Tailor made solutions
Among others, Special Seals, Special Bore and/or face to face and/or connections to pipeline, Special Insulation Design, Extended connections for drain/vent/seal injectors, Clean Processing, DIB-1 (with or without integrated thermal relief system), DIB-2.
Among others, Special Seals, Special Bore and/or face to face and/or connections to pipeline, Special Insulation Design, Extended connections for drain/vent/seal injectors, Clean Processing, DIB-1 (with or without integrated thermal relief system), DIB-2.
Monograms owned
API 6D, API 6A (Up to PSL4, PR2), API 6DSS.
API 6D, API 6A (Up to PSL4, PR2), API 6DSS.
